[MatPlotLib] matplotlib 정리

matplotlib : ploting library. 그래프 생성을 위한 다양한 함수 지원.

 * mat1.py

import numpy as np
import matplotlib.pyplot as plt

plt.rc('font', family = 'malgun gothic')   # 한글 깨짐 방지
plt.rcParams['axes.unicode_minus'] = False # 음수 깨짐 방지

x = ["서울", "인천", "수원"]
y = [5, 3, 7]
# tuple 가능. set 불가능.

plt.xlabel("지역")                 # x축 라벨
plt.xlim([-1, 3])                 # x축 범위
plt.ylim([0, 10])                 # y축 범위
plt.yticks(list(range(0, 11, 3))) # y축 칸 number 지정
plt.plot(x, y)                    # 그래프 생성
plt.show()                        # 그래프 출력

data = np.arange(1, 11, 2)
print(data)    # [1 3 5 7 9]
plt.plot(data) # 그래프 생성
x = [0, 1, 2, 3, 4]
for a, b in zip(x, data):
    plt.text(a, b, str(b)) # 그래프 라인에 text 표시
plt.show()     # 그래프 출력

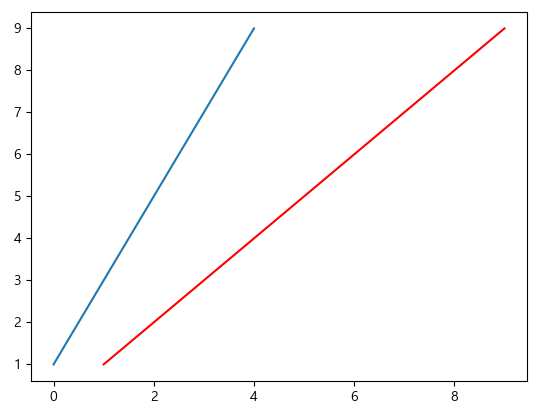

plt.plot(data)
plt.plot(data, data, 'r')
plt.show()

x = np.arange(10)
y = np.sin(x)
print(x, y)
plt.plot(x, y, 'bo')  # 파란색 o로 표시. style 옵션 적용.
plt.plot(x, y, 'r+')  # 빨간색 +로 표시

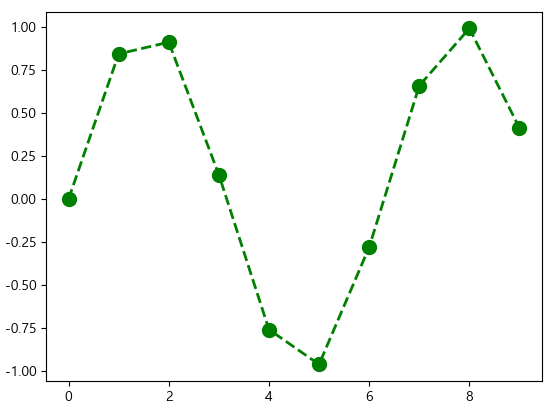

plt.plot(x, y, 'go--', linewidth = 2, markersize = 10) # 초록색 o 표시
plt.show()

# 홀드 : 그림 겹쳐 보기
x = np.arange(0, np.pi * 3, 0.1)
print(x)
y_sin = np.sin(x)
y_cos = np.cos(x)
plt.plot(x, y_sin, 'r')     # 직선, 곡선
plt.scatter(x, y_cos)       # 산포도
#plt.plot(x, y_cos, 'b')
plt.xlabel('x축')
plt.ylabel('y축')
plt.legend(['사인', '코사인']) # 범례
plt.title('차트 제목')         # 차트 제목
plt.show()

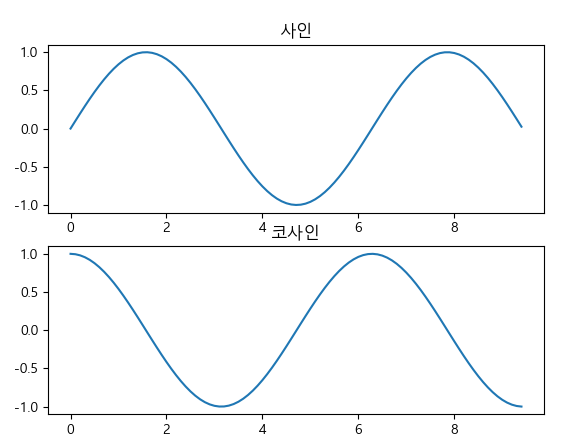

# subplot : Figure를 여러 행열로 분리
x = np.arange(0, np.pi * 3, 0.1)
y_sin = np.sin(x)
y_cos = np.cos(x)

plt.subplot(2, 1, 1)
plt.plot(x, y_sin)
plt.title('사인')

plt.subplot(2, 1, 2)
plt.plot(x, y_cos)
plt.title('코사인')
plt.show()

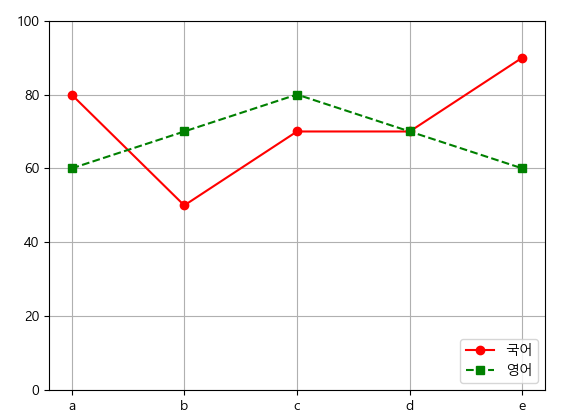

irum = ['a', 'b', 'c', 'd', 'e']
kor = [80, 50, 70, 70, 90]
eng = [60, 70, 80, 70, 60]
plt.plot(irum, kor, 'ro-')
plt.plot(irum, eng, 'gs--')
plt.ylim([0, 100])
plt.legend(['국어', '영어'], loc = 4)
plt.grid(True)          # grid 추가

fig = plt.gcf()         # 이미지 저장 선언
plt.show()              # 이미지 출력
fig.savefig('test.png') # 이미지 저장

from matplotlib.pyplot import imread
img = imread('test.png') # 이미지 read
plt.imshow(img)          # 이미지 출력
plt.show()

---

차트의 종류 결정

 * mat2.py

import numpy as np
import matplotlib.pyplot as plt

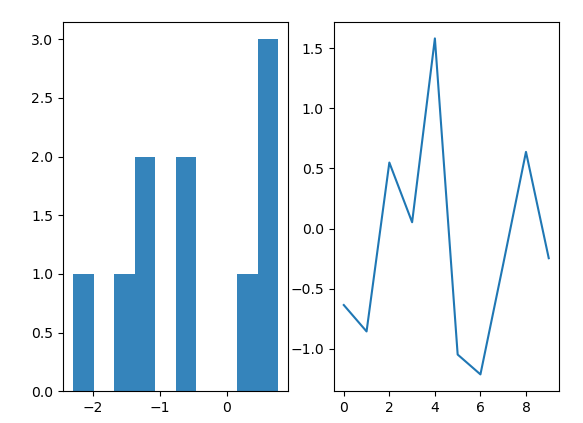

fig = plt.figure()             # 명시적으로 차트 영역 객체 선언
ax1 = fig.add_subplot(1, 2, 1) # 1행 2열 중 1열에 표기
ax2 = fig.add_subplot(1, 2, 2) # 1행 2열 중 2열에 표기

ax1.hist(np.random.randn(10), bins=10, alpha=0.9) # 히스토그램 출력 - bins : 구간 수, alpha: 투명도
ax2.plot(np.random.randn(10)) # plot 출력
plt.show()

fig, ax = plt.subplots(nrows=2, ncols=1)
ax[0].plot(np.random.randn(10))
ax[1].plot(np.random.randn(10) + 20)
plt.show()

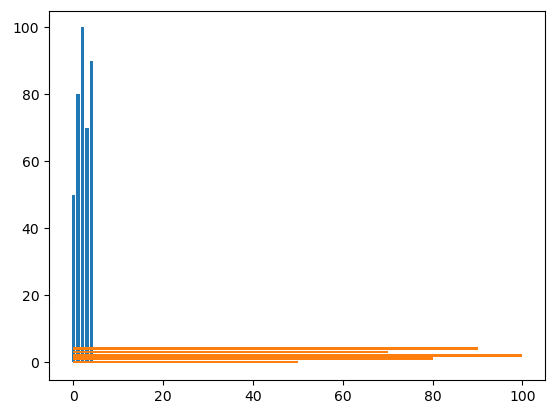

data = [50, 80, 100, 70, 90]
plt.bar(range(len(data)), data)
plt.barh(range(len(data)), data)
plt.show()

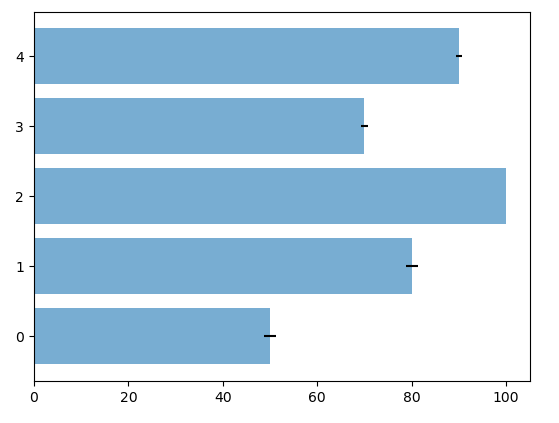

data = [50, 80, 100, 70, 90]
err = np.random.randn(len(data))
plt.barh(range(len(data)), data, xerr=err, alpha = 0.6)
plt.show()

plt.pie(data, explode=(0, 0.2, 0, 0, 0), colors = ['yellow', 'blue', 'red'])
plt.show()



n = 30
np.random.seed(42)
x = np.random.rand(n)
y = np.random.rand(n)
color = np.random.rand(n)
scale = np.pi * (15 * np.random.rand(n)) ** 2
plt.scatter(x, y, s = scale, c = color)
plt.show()

import pandas as pd

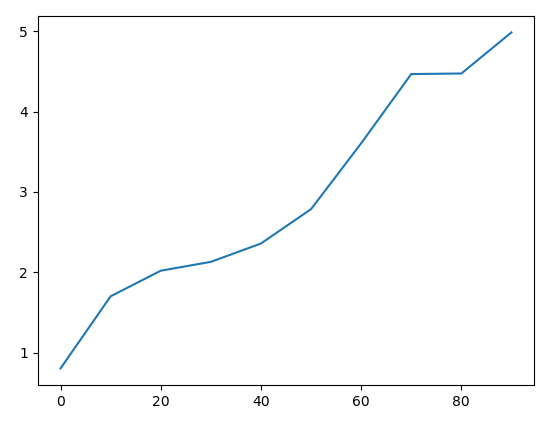

sdata = pd.Series(np.random.rand(10).cumsum(), index = np.arange(0, 100, 10))
plt.plot(sdata)
plt.show()

# DataFrame
fdata = pd.DataFrame(np.random.randn(1000, 4), index = pd.date_range('1/1/2000', periods = 1000),\
                     columns = list('ABCD'))
print(fdata)
fdata = fdata.cumsum()
plt.plot(fdata)
plt.show()

---

seaborn : matplotlib 라이브러리의 기능을 보완하기 위해 사용

 * mat3.py

import matplotlib.pyplot as plt
import seaborn as sns

titanic = sns.load_dataset("titanic")
print(titanic.info())
print(titanic.head(3))

age = titanic['age']
sns.kdeplot(age) # 밀도
plt.show()

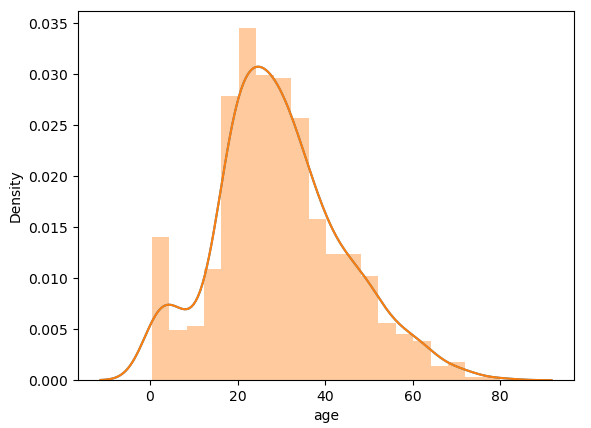

sns.distplot(age) # kdeplot + hist
plt.show()

import matplotlib.pyplot as plt
import seaborn as sns

titanic = sns.load_dataset("titanic")
print(titanic.info())
print(titanic.head(3))

age = titanic['age']
sns.kdeplot(age) # 밀도
plt.show()

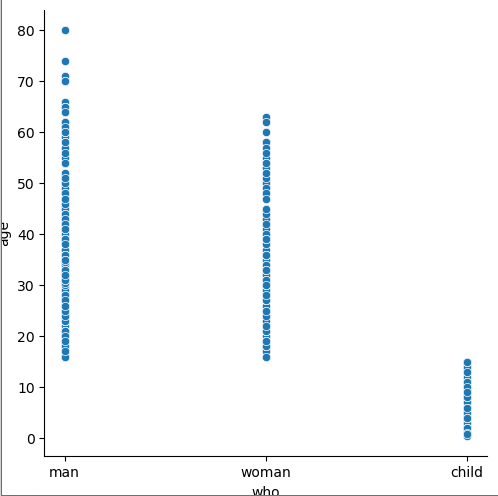

sns.relplot(x = 'who', y = 'age', data=titanic)
plt.show()



sns.countplot(x = 'class', data=titanic, hue='who') # hue : 카테고리
plt.show()

t_pivot = titanic.pivot_table(index='class', columns='age', aggfunc='size')
print(t_pivot)
sns.heatmap(t_pivot, cmap=sns.light_palette('gray', as_cmap=True), fmt = 'd', annot=True)
plt.show()

import pandas as pd
iris_data = pd.read_csv('../testdata/iris.csv')
print(iris_data.info())
print(iris_data.head(3))
'''
   Sepal.Length  Sepal.Width  Petal.Length  Petal.Width Species
0           5.1          3.5           1.4          0.2  setosa
1           4.9          3.0           1.4          0.2  setosa
2           4.7          3.2           1.3          0.2  setosa
'''

plt.scatter(iris_data['Sepal.Length'], iris_data['Petal.Length'])
plt.xlabel('Sepal.Length')
plt.ylabel('Petal.Length')
plt.show()

cols = []
for s in iris_data['Species']:
    choice = 0
    if s == 'setosa' : choice = 1
    elif s == 'versicolor' : choice = 2
    else: choice = 3
    cols.append(choice)

plt.scatter(iris_data['Sepal.Length'], iris_data['Petal.Length'], c = cols)
plt.xlabel('Sepal.Length')
plt.ylabel('Petal.Length')
plt.show()

# pandas의 시각화 기능
print(type(iris_data)) # DataFrame

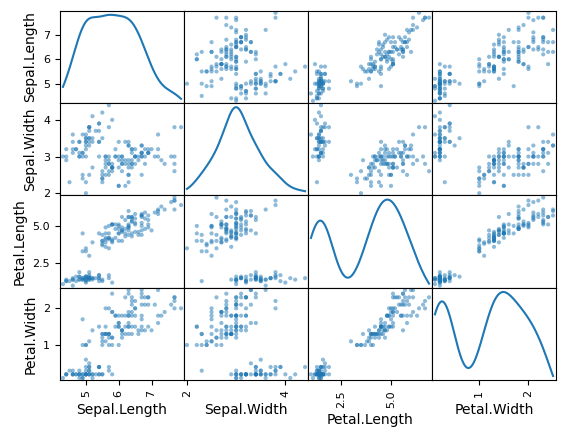

from pandas.plotting import scatter_matrix
#scatter_matrix(iris_data, diagonal='hist')
scatter_matrix(iris_data, diagonal='kde')
plt.show()

# seabon
sns.pairplot(iris_data, hue = 'Species', height = 1)
plt.show()

x = iris_data['Sepal.Length'].values
sns.rugplot(x)
plt.show()

sns.kdeplot(x)
plt.show()

# pandas의 시각화 기능
import numpy as np

df = pd.DataFrame(np.random.randn(10, 3), index = pd.date_range('1/1/2000', periods=10), columns=['a', 'b', 'c'])
print(df)

#df.plot() # 꺽은선
#df.plot(kind= 'bar')
df.plot(kind= 'box')
plt.xlabel('time')
plt.ylabel('data')
plt.show()

df[:5].plot.bar(rot=0)
plt.show()

---

 * mat4.py

import pandas as pd

tips = pd.read_csv('../testdata/tips.csv')
print(tips.info())
print(tips.head(3))
'''
   total_bill   tip     sex smoker  day    time  size
0       16.99  1.01  Female     No  Sun  Dinner     2
1       10.34  1.66    Male     No  Sun  Dinner     3
2       21.01  3.50    Male     No  Sun  Dinner     3
'''

tips['gender'] = tips['sex'] # sex 칼럼을 gender 칼럼으로 변경
del tips['sex']
print(tips.head(3))
'''
   total_bill   tip smoker  day    time  size  gender
0       16.99  1.01     No  Sun  Dinner     2  Female
1       10.34  1.66     No  Sun  Dinner     3    Male
2       21.01  3.50     No  Sun  Dinner     3    Male
'''

# tip 비율 추가
tips['tip_pct'] = tips['tip'] / tips['total_bill']
print(tips.head(3))
'''
   total_bill   tip smoker  day    time  size  gender   tip_pct
0       16.99  1.01     No  Sun  Dinner     2  Female  0.059447
1       10.34  1.66     No  Sun  Dinner     3    Male  0.160542
2       21.01  3.50     No  Sun  Dinner     3    Male  0.166587
'''



tip_pct_group = tips['tip_pct'].groupby([tips['gender'], tips['smoker']]) # 성별, 흡연자별 그륩화
print(tip_pct_group)
print(tip_pct_group.sum())
print(tip_pct_group.max())
print(tip_pct_group.min())

result = tip_pct_group.describe()
print(result)
'''
               count      mean       std  ...       50%       75%       max
gender smoker                             ...
Female No       54.0  0.156921  0.036421  ...  0.149691  0.181630  0.252672
       Yes      33.0  0.182150  0.071595  ...  0.173913  0.198216  0.416667
Male   No       97.0  0.160669  0.041849  ...  0.157604  0.186220  0.291990
       Yes      60.0  0.152771  0.090588  ...  0.141015  0.191697  0.710345

print(tip_pct_group.agg('sum'))
print(tip_pct_group.agg('mean'))
print(tip_pct_group.agg('max'))
print(tip_pct_group.agg('min'))

def diffFunc(group):
    diff = group.max() - group.min()
    return diff

result2 = tip_pct_group.agg(['var', 'mean', 'max', diffFunc])
print(result2)
'''
                    var      mean       max  diffFunc
gender smoker
Female No      0.001327  0.156921  0.252672  0.195876
       Yes     0.005126  0.182150  0.416667  0.360233
Male   No      0.001751  0.160669  0.291990  0.220186
       Yes     0.008206  0.152771  0.710345  0.674707
'''

import matplotlib.pyplot as plt

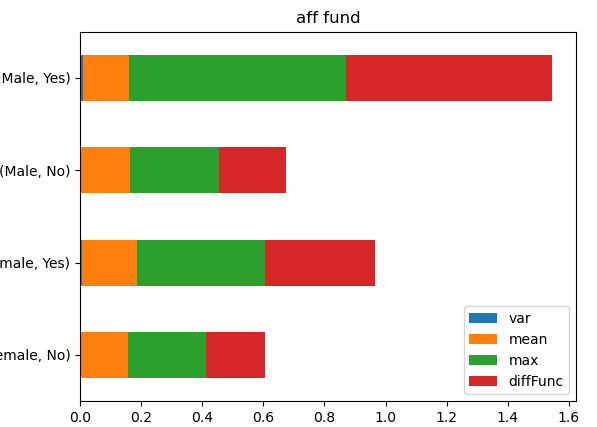

result2.plot(kind = 'barh', title = 'aff fund', stacked = True)
plt.show()
